复合传感器Combi Well |
| 指定用途 |

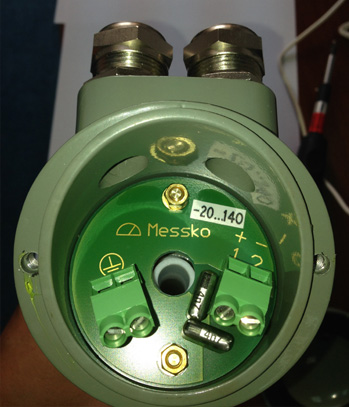

| 复合传感器模块是油温计的安装用的模块。它可以被安装在DIN 42554温度计封套中。此外它还备有一符合DIN 43760的测量电阻Pt100，这样可实现温值远传。复合传感器模块由潜管和接头组成。在接头处有连接到远端设备（例如：数码显示器）的接线端子以及连接到潜管的用于指针温度计的温度传感器的端子。 |
| 可供选择的输出信号 |
|
• Cu10 按照 ANSI ASME PTC 19.3 / 名称: 复合传感器模块 Cu10 |
  |
|
COMBI WELL |
| Specified application |

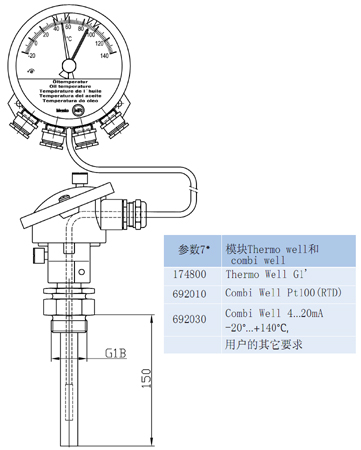

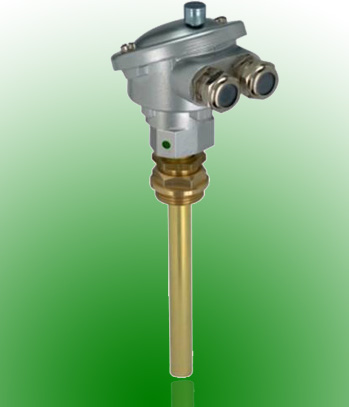

| Like the thermo well, the combi well is a mounting well for the oil thermometer. It can be mounted in the DIN 42554 thermometer pocket. Additionally it features an integral Pt100 measuring resistor to DIN 43760 for transmission of the temperature measured value over a distance. The combi well consists of the immersion tube and the terminal head. The head contains the terminals for remote devices (such as a digital display) and a cable gland through to the immersion tube, for the temperature sensor of the pointer-type thermometer. |
| Optional output signals: |

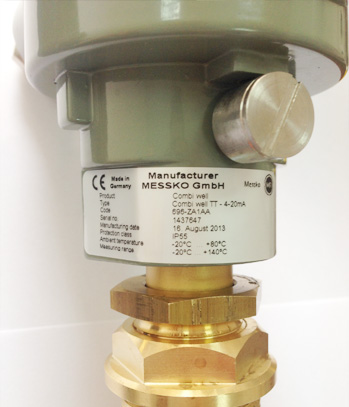

| • Cu10 as per ANSI ASME PTC 19.3 / Type: Combi well Cu10 • 4..20mA / Type: Combi-TT |
