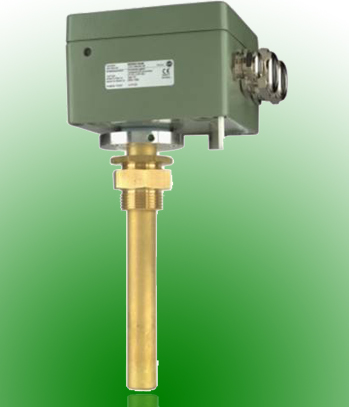

温度传感器ZT-F2.1 |
| 指定用途 |

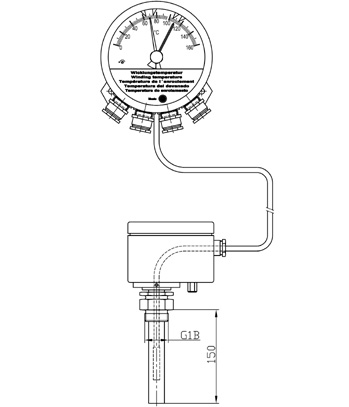

| 绕组温度传感器ZT-F2.1是TRASY2模块系列的核心组成部分。它和指针温度计综合使用，根据连接方式的不同可完成不同的功能： • 加热测量传感器，模拟绕组温度 • 通过可调电阻来调整温度突变 • 可通过传感器直接进行机械显示 • 根据DIN43760标准提供一个与温度成正比的阻抗信号，进行测量值的远传 |
| 可供选择的输出信号 |
|
• 1x / 2x Cu10，按照ANSI ASME PTC 19.3/ 名称: 绕组温度传感器ZT-F2.1/Cu10 |
  |
|

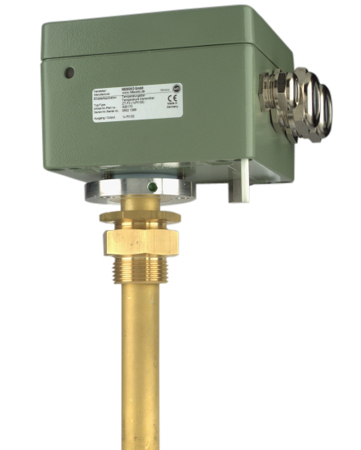

TEMPERATURE TRANSMITTER ZT-F2.1 |
| Specified application |
| This is at the heart of the TRASY2 system. It is combined with the pointer thermometer, and depending on the connections made, fulfils various functions: • Heating the sensors to simulate the winding temperature • Setting the temperature gradient using DIP-switches • Pick-up capability for the sensor of a mechanical pointer thermometer • Preparing a temperature-proportional resistance signal to DIN43760 (Pt100) for remote indication |

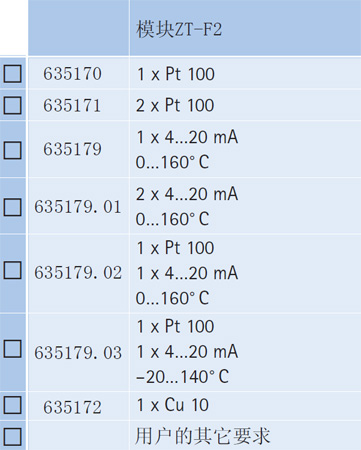

| Optional output signals: |

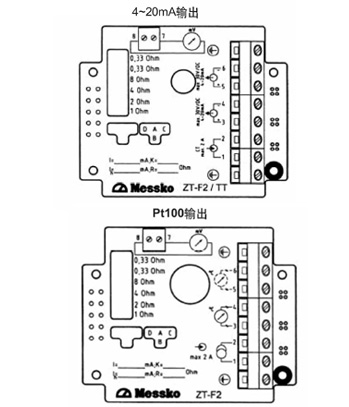

| • 1x / 2x Cu10 as per ANSI ASME PTC 19.3 / Type: ZT-F2.1/Cu10 • 1x / 2x 4..20mA / Type ZT-F2.1/TT |
