Trasy2系列绕组温度计 |
| 产品描述 |
|

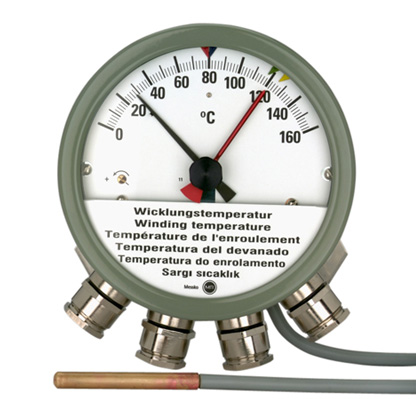

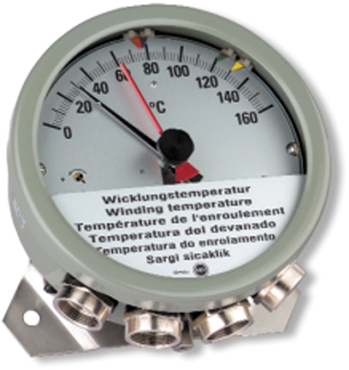

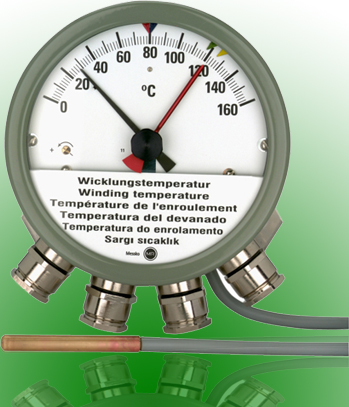

模块型仪表TRASY2是专门为配电变压器和电力变压器研发的。TRASY2是最初的模块系列产品的后期发展成果，投入市场已经有数年了。 MT-STW160F2是一个自行测量，能量自给的的指针温度计，它通过微动开关来控制外部开关过程。 温度测量通过液体的温度传感器来实现并通过一个布尔登管来传送温值，温度计带有可自由调节的微动开关。 |
| 以下设备可以和TRASY2-系列综合使用： |
| • 信号转换器TT30 ，将传感器信号转换为模拟的 (z.B. 4....20mA)或数字过程信号(RS485) • 测量值转换器 Pt－MU 将Pt100的信号转换成与温度成比例的统一信号 • 电子显示器 EI100/160 开关柜中的温度显示 • 数字显示器1272AT • 动圈仪表PQ96/PQ144 用于远程显示 • 万用镇流器将电流互感器的输出（CT）适配到指针温度计的输入 |
| 您的受益之处 |
|
• 布尔登管，无须增加机械元件 |
 |
|
TRASY2-Winding temperature indicator |
| PRODUCT DESCRIPTION |
|

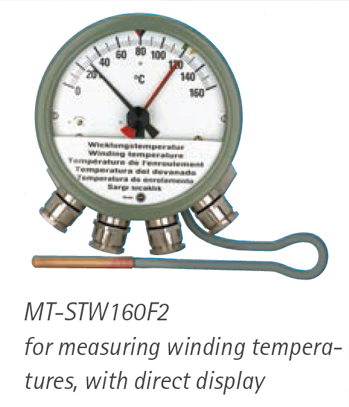

The TRASY2 thermometer range has been designed specially for measuring temperatures in distribution and power transformers. TRASY2 is a development of the first modular system which has achieved an excellent track record over the years. The MT-STW160F2 is a stand-alone, energy independent pointer thermometer which use microswitches for various switching functions. The measured value is captured by a liquid filled temperature sensor and is then transmitted via a spiral spring which is linked with zero backlash to a pointer spindle. The thermometer has microswitches with fully adjustable settings. |
| You can combine the following devices with the compact series: |
| • Signal Converter TT30 to convert the sensor signals in analogue (for instance 4....20mA) or digital (RS485) process signals • Measured Value Transducer Pt-MU to convert the signals of a Pt100 to a uniform signal proportional to the temperature • Electronic Indicator El100/160 for temperature indication in the switchboard / switching cubicle • Digital Indicator 1272AT resp. • Moving-Coil Indicator PQ96 /PQ144 for remote indication • Multi Ballast Transformer to adapt the current transformer output to the input of the pointer thermometer |
| YOUR BENEFITS AT A GLANCE |

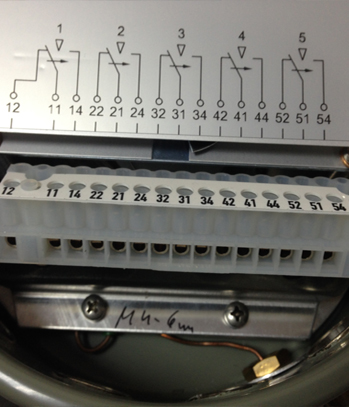

| • Bourdon spring without additional machinery • Closed system with pressure cell, protection from external influences such as dust or humidity • Compensation for the ambient temperature functions at temperatures up to -50°C • Two redundant measuring points in combination with combined sleeve or winding temperature indicator ZT-F2.1 • Up to 6 main switching contacts possible • Digital output with a TT30 signal converter • Laminated safety glass with UV filter |
