  • 商品名称： D1272AT数字指示器





  • 商品详细介绍

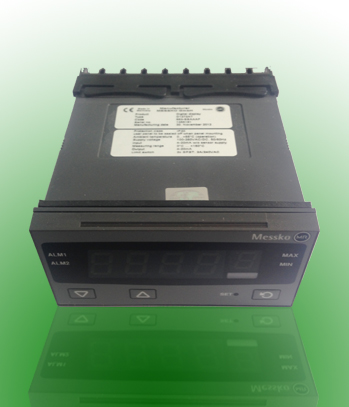

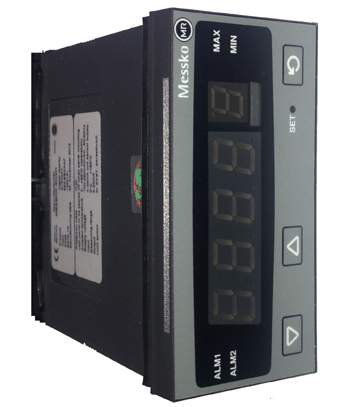

D1272数字指示器

指定用途
D1272AT 数字显示器用于显示过程值如温度或油位。
调试仪表前， 务必阅读并查看铭牌上和操作使用说明书 上的操作限定值。
根据所监控的湿度状态对吸湿器进行烘干。
产品规格

D1272AT数字显示器是易于使用的装置，用于显示标准Pt100 或 4-20mA信号。正常操作时，测量值显示在四位LCD显示器上。
D1272AT数字式显示器可选择配备模拟输入用于过程值 的远距离传输。请见铭牌。
下列标准信号可在工厂设 定：
• 4 - 20mA
• 0 - 20mA
• 0 - 5V
• 0 - 10V
其它输出信号可用信号转换器补充。

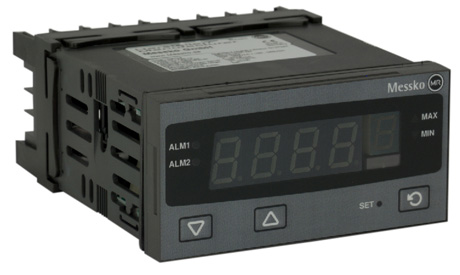

Digital Indicator D1272AT

Specified application
The D1272AT digital indicator is used to indicate process values such as temperature or oil level, for example.
It is important to read and observe the limit values for operation indicated on the nameplate and in the operating instructions prior to commissioning the device.
Product Specification
The D1272AT digital indicator is an easy-to-use device for the indication of standard Pt100 or 4-20mA signals.During normal operation, the measured value is shown o n t h e four-position LCD display.

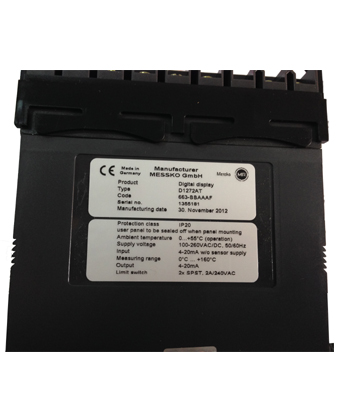

The D1272AT digital indicator can be optionally equipped with an analog output for the remote transmission of the process value. See nameplate.
The following standard signals can be set at the factory:
• 4 - 20mA
• 0 - 20mA
• 0 - 5V
• 0 - 10V
Other output signals can be implemented with a signal converter.
