- 商品详细介绍
|

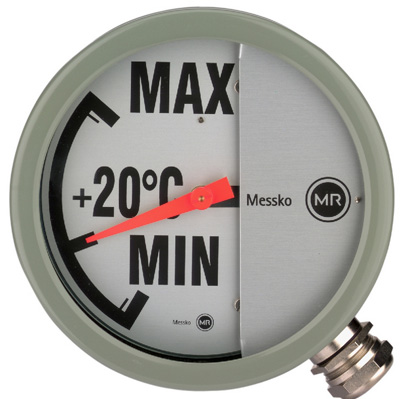

MTO系列油位计 |
| 产品描述 |
|
油位计MTO-ST(F)160(G)是带或不带转换触头的测量仪器。它们是监控变压器储油柜内油位的理想选择。 油位显示器由一传感器组件和一显示器组件组成，两个组件由可分离的接头连接。感应器组件配有一防油法兰，并直接安装在油箱壁上。浮杆可将浮子的提升动作传至传动轴。传动轴通过磁性接手与显示器组件指针式主轴连接在一起。浮子在油箱内一般是作径向运动的。 |
| 油位计还可和一个或两个微型开关一起供货： |
| • MTO-ST160(G): 可调的限值开关 (最多2个转换触头) • MTO-STF160(G):固定的限值开关(最多3个转换触头) |
| 您的受益之处 |
|
• 分开布置传感器和显示器 |
 |
|

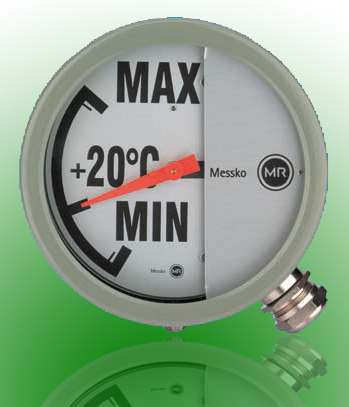

MTO-Oil level indicator |
| PRODUCT DESCRIPTION |
|
MTO-ST(F)160(G) oil level indicators are measuring devices with and without switching contacts. They are ideally suited to measuring the liquid level in the conservators of transformers. The level indicator consists of a sensor and a display unit, which are linked separately. The sensor unit consists of a sealed flange plate and is installed directly in the wall of the conservator. The float arm transfers the rise and fall of the float to the spindle. This spindle is connected via a magnetic clutch to a pointer spindle in the display unit. The movement of the float is normally radial to the casing. The "G" version is recommended for installation in narrow or flat conservators in which only limited movement is possible; in this case the float movement is axial to the casing and the display can be scaled at a ratio of 1:1, 1:2, 1:3 or 1:4. |
| These level indicators can be supplied with either one or two microswitches: |
| • MTO-ST160(G): Adjustable limit switch (max. 2 changeover contacts) • MTO-STF160(G): Fixed limit switch (max. 3 changeover contacts) |
| YOUR BENEFITS AT A GLANCE |
| • Separation of sensor and display element with magnetic coupling • Radial and axial float movement with different arm lengths and up to four floats • UV laminated safety glass • Up to three adjustable or fixed limit switches (High – Low – Critical Low) • Optional mounting with inclination angle (15°; 30°; 45°) • Optional remote indication with TT30 converter; remote indication via Ei100 or Ei160 |
