DB100免维护吸湿器 |
| 带α控制器的 DB100 |
| 建议应用于 • 分接开关 • 消弧线圈（彼得生线圈） • 充气接线盒 • 牵引变压器 |
| 根据所监控的湿度状态对吸湿器进行烘干。 |
| 带β控制器的 DB100 |
这是一个自学系统，建议应用于 |
| 除了监控湿度外，还将确定一个时间窗口, 在这个时间窗口里进行储油柜排气和脱水室再生。 |
 |
 |
|

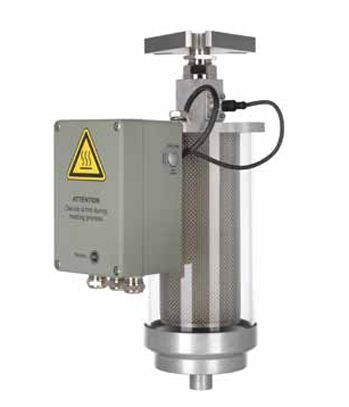

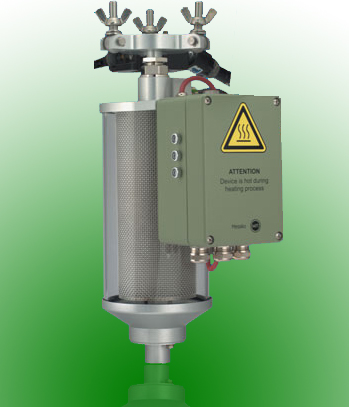

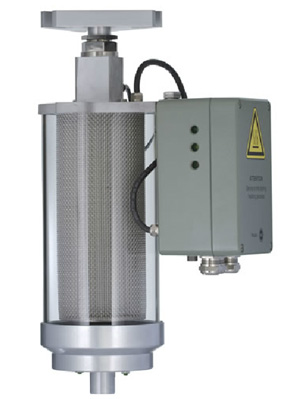

DB100 Maintenance-Free Dehydrating Breather |
| DB100 WITH α-CONTROLLER |
| Recommended for use on • on-load tap-changers • arc suppression coils (Petersen coils) • air-filled junction boxes • traction transformers |
| The dehydrating breather is only heated when needed (its state is monitored for hydration). |
| DB100 WITH β-CONTROLLER |
| This is a self-learning system which is recommended for use on • transformers with cyclical loads, like network transformers (≤ 40 MVA) • phase shifting transformers (≤ 40 MVA) • shunt reactors (≤40 MVar) |
| In addition to monitoring the hydration, a time window is determined during which the oil conservator exhales, and the dehydrating chambers are regenerated. |
