ALFA系列冷却器 |
| Luvata冷却器结构特点 |
| • 标准化的设计，简洁的型号编码 • 繁多的种类提供最优化的选型 • 水平或垂直安装满足不同的设计 • 低噪音，不同的风扇转速可供选择 • 出厂前油冲洗确保内部清洁度 • 不同的原材料组合提供最合适的抗腐蚀性保护 • 优良的设计确保对震动、冲击以及热量的耐受度 |
| General概述 |

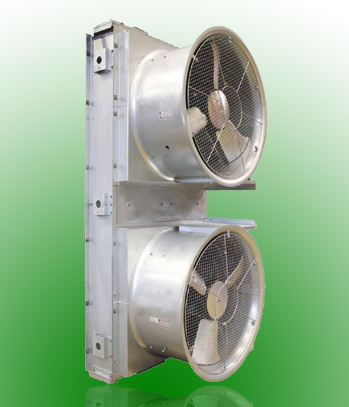

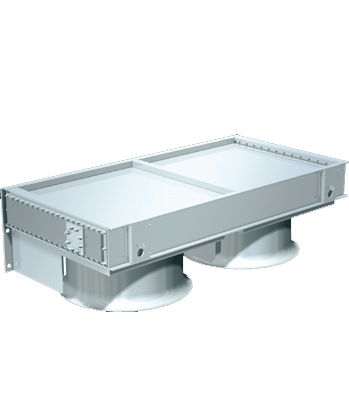

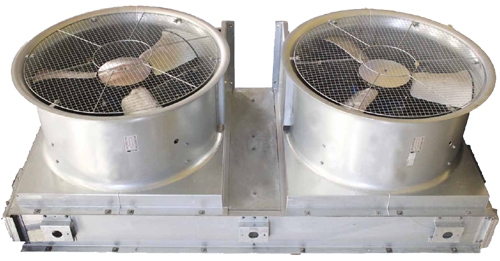

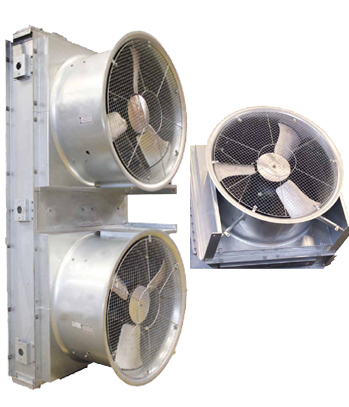

| The transformer oil cooler ALFA is used to cool power transformers by means of forced air and oil flow. The oil in the cooler is circulated using a pump (can be ordered separately). The ALFA transformer oil cooler is delivered as a fully factory-assembled unit. Each cooler consists of a casing with a finned tube heat exchanger with one or two fan units. When two fan units are used, the fans are separated by a partion wall. This permits each fan to be enabled or disabled to give incremental power regulation as the cooling need changes. The cooler is designed to withstand vibrations, shocks, seismic forces and thermal movements. |
| Specifications |
The transformer oil cooler ALFA is made of aluminium tubes mounted in a bundle of aluminium plate fins. The fins on the tubes give an increased heating surface to compensate for the low heat transfer coefficient on the air side. The continuous arrangement of the fins in the air flow direction and the wide fin pitch provide good resistance against clogging. The motor is delivered with open drainage, as the cooler is for outdoor installations. The Luvata transformer oil cooler concept, type Oil Forced Air Forced (OFAF), offers many benefits including:
|
 |
