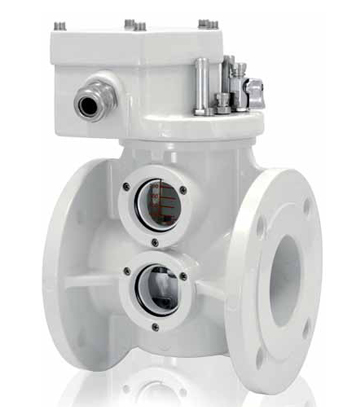

“eBR”电子式气体继电器 |
| COMEM电子式气体继电器配备数字接口以便于接入智能电网，也可以通过中央控制单元接入其他独立系统。此电子式压力释放阀可独立工作，或与相关通信协议一致的独立系统相结合，可持续监测变部的气体聚集量及油流速度。 |
| 结构特点 |
COMEM电子式气体继电器由高性能零件组装而成，具有优异的油密封性能。 |
| 产品优势 |

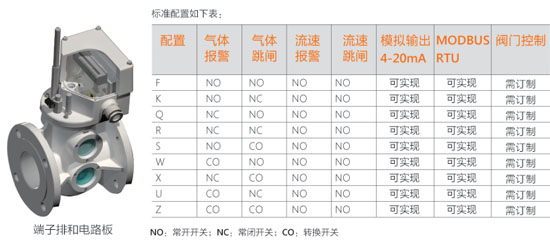

| • 适用于智能电网 • 模拟及数字信号输出 • 持续监测气体继电器内部的气体聚集量 • 报警和跳闸流带可设定 • 双流速（报警和跳闸） • 浮球和流速挡板所触发的干簧管开关分别处于独立的回路中，发生故障时便于识别和分析 • 控制开关 |
 |
|
Buchholz Relay type eBR |
| COMEM’s eBR is equipped with a digital interface for easy connection to the smart grid and it can be integrated into a single system via a central control unit.The eBR can work in standalone mode or integrated into a single system, which is compatible with the most common international communication protocol standards. COMEM’s eBR provides improved monitoring of the gas inside the Buchholz relay and the oil flow speed. |
| Construction |

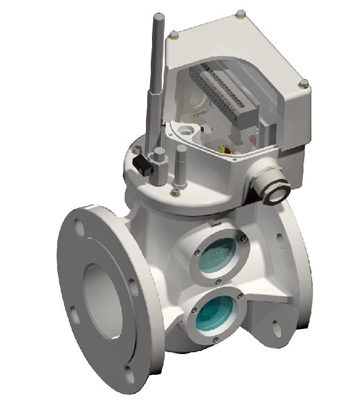

| The new COMEM Buchholz relay with analog and digital output is an assembly of high strength components which ensures a perfect oil seal. The main body of the relay is fitted with tempered glassinspection windows with graduated scale markings in cubic centimeters to indicate the internal volume. The oil drain plug is located at the bottom of the main body. The top cover hold the frame which contains the moving parts of the relay. The two floats and their associated reed switches reed and magnets, two calibrated flow valves. The cover also: • A gas discharge valve with G1/8" in male thread with protective cap • A valve for pneumatically testing the alarm and insulation circuits, with protective cap • A push rod for mechanical verification of the reed switch with protective cap • A terminal box |
| Advantages |

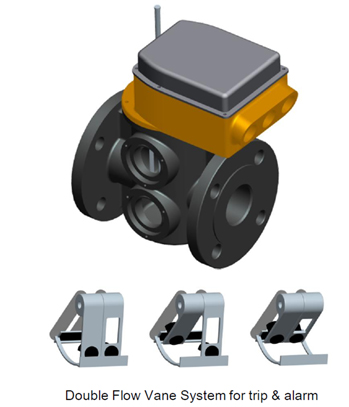

| • Continuous gas monitoring of the gas inside the Buchholz relay; • Settable alarm and trip thresholds for the oil flow speed; • Double oil flow threshold (alarm and trip); • Thanks to the dedicated and independent contacts for both floats and flow vane, in case of failure, there is a clear identification of the main cause; • Contact output for the gas discharge valve opening; • Analog Output and Digital Control. |
